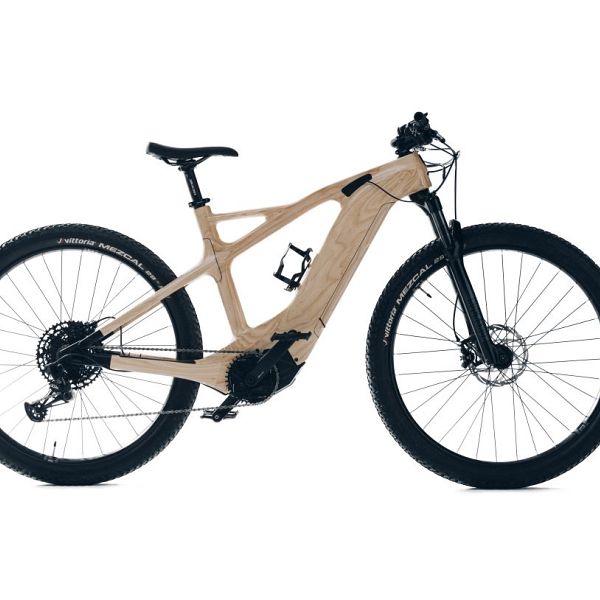

E-Annum Bicycle Wood Mountain Bike

Natural materials and an attractive appearance will fascinate passersby who will be unable to avert their gaze from your bike.

Components and Equipment

We developed the bike with the user in mind, who wants to ride on a variety of surfaces, both on paved roads and on steep single-tracks, without fear of being stopped by the slope. This is due to two factors. Motor power, which offers an incredible 112Nm of torque and provides enough power even on the steepest slopes, and modern frame geometry, which ensures good power transfer to the surface, low center of gravity and good riding characteristics on both ascents and demanding descents. The entire package is rounded off by a battery, which is integrated into the down tube of the frame and offers as much as 672Wh of capacity

 info@annum-bicycles.com.

FRAM , 29˝, aluminum, 148x12mm Thru-Axle rear hub mount, integrated peg carrier

SPRINGS Marzocchi Bomber Z2, E-Bike+, 120mm travel 15QRx110, 44mm Rake

EQUIPMENT Sram / SunRace 1x12p gear system. Sram NX rear derailleur

BRAKES Magura MT Trail hydraulic, 180mm/160mm rotorsENGINE

Domel pedal, 48V, 250W 112Nm

CRANKCASE Miranda

REAR CHAINI Sram NX, 12-speed, 11-51t

TIRE Vittoria Mezcal 29×2,6

BATTERY Econo, 48V, 660Wh, 14Ah

Equipment

  • Ritchey seatpost WCS carbon link flexlogic 31.6
  • Ritchey WCS Pro Flat Handlebar 620mm – Handlebar – 31.8 Flat
  • Ritchey saddle wcs skyline
  • Ritchey headsets WCS LOGIC 1-1/8″
  • Ritchey Comp Carbon Road Fork 1 1/8″ – UD Glossy Carbon
  • Ritchey WCS 4Axis Stem 6° 31.8mm
  • Vittoria tires Rubino IV G+ 25×700 black
  • FSA Vision Team 35 Wheel Set Clincher – black

The weight of the Annum bike

The weight of the wooden bike or, more precisely, the weight of the wooden frame depends on the type of wood used (from the heaviest ash to maple, walnut, mahogany, cherry…) and the equipment and components on the bike. Besides, the frame is hollow, which helps reduce the weight.

The weight of the E-Annum bike wooden frame (without equipment and components) is approximately 4 kg. The weight of the entire wooden bike is around 21kg.
